Evaporator coil replacement for Miami air handlers
Humid indoor air eats evaporator coils. When the leak is in the coil itself, patching it only buys weeks, so we replace it with a matched coil and charge the system once.
Miami service office on SW 117th Ave · We answer 24/7
- Answered 24/7
- Miami service office
- Matched to your condenser
Updated October 2026
Evaporator coil replacement in Miami typically runs $600 to $2,000 in published Florida guides, depending on coil size, access and whether it's covered by a parts warranty. A technician from our SW 117th Ave office confirms the leak is in the coil, matches the new coil to your condenser, and weighs in a fresh charge after a deep vacuum.
The job
Why coils fail in Miami homes
The indoor coil sits in a wet, warm air stream most of the year. Over time the copper tubes develop tiny pinholes from corrosion, and refrigerant seeps out slowly until the coil freezes or the system blows warm air. By the time a leak is found in the coil, a second and third pinhole are usually already forming.
Replacing the coil is the lasting fix. The new coil has to match the condenser's capacity and refrigerant, or the system never reaches its rated efficiency and can struggle on the hottest afternoons.
Your options
Coil only or the whole air handler
| New coil only | New air handler | |
|---|---|---|
| Best when | Blower and cabinet are sound | Blower is original and the cabinet is rusting |
| What changes | Coil, pan connections, charge | Coil, blower, cabinet, controls and pan |
| Cost | Lower | Higher, with more fixed at once |
Both options get a matched coil and a weighed-in charge; the difference is how much of the indoor unit is new.
What moves the price
What decides the price of a new coil
Planning range: Coil replacement (Florida): $600-$2,000 in published 2026 guides. A market range, not our quote.
Coil size and style
Cased, uncased and slab coils differ in price and fit.
Parts warranty
A registered unit may cover the coil itself.
Refrigerant and charge
Recovery, vacuum and a weighed-in charge.
Access
Attic and tight closet installs add labor.
Drain pan condition
A rusted pan is replaced with the coil.
Matching the condenser
The coil must fit its capacity and refrigerant.
Permit
Required when the job is part of a system change.
What we see on this job

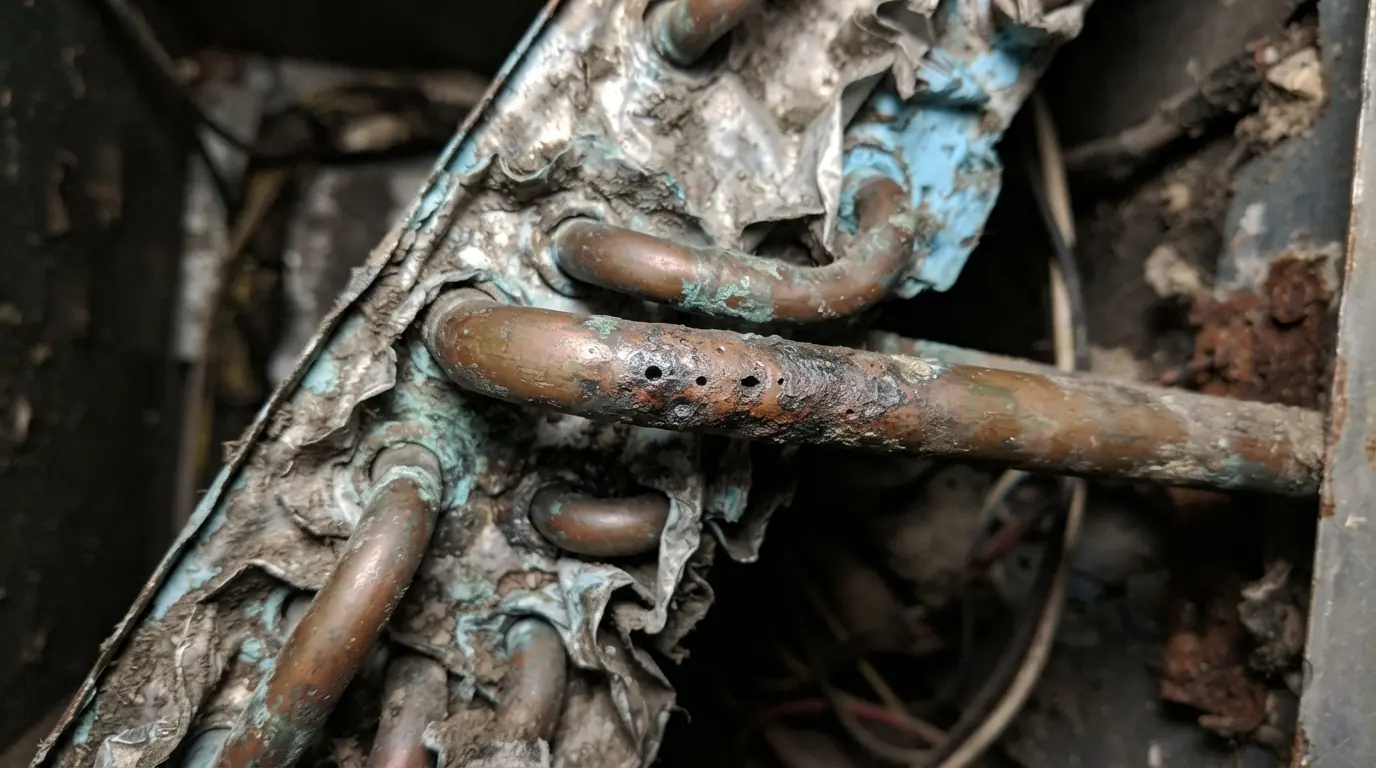

Leaking evaporator coil
The signs are a system that needs refrigerant again within a season, ice on the suction line, an oily film on the coil face or an electronic detector that goes off inside the air handler. We confirm it with a detector and, where needed, a nitrogen pressure test with the coil isolated. A single leak on a joint can sometimes be brazed. Pinholes in the tube bundle cannot be repaired reliably, and that is the point where a new coil is the right answer rather than another recharge.
Coil vs full air handler decision
In many Miami closets the coil and the blower live in one air handler cabinet. If the blower motor is original, the cabinet is rusting from years of condensate, and the unit is past twelve years, replacing the whole air handler costs more but fixes several problems at once. If the cabinet and blower are sound, a coil alone is the better value. We look at the pan, the blower, the insulation and the cabinet before recommending either, and you get both numbers.
What is included
What a coil replacement from us includes
- Leak confirmed in the coil before ordering
- Coil matched to condenser capacity and refrigerant
- Refrigerant recovered, not vented
- New coil set with the drain pan rebuilt
- Brazed joints purged with nitrogen
- Standing pressure test before vacuum
- Deep vacuum to remove moisture
- Nameplate charge weighed in
- Superheat and subcooling recorded for you
Local conditions
Permits and matched parts in Miami-Dade
Miami-Dade reviews equipment specifications, including AHRI certificate numbers, on mechanical permits, and inspectors check that what is installed matches what was permitted, so a coil has to be a real match for the condenser rather than whatever fits the cabinet. New equipment is also moving from R-410A to R-454B, which is why we confirm the refrigerant the coil is built for before ordering one for an existing system.
Step by step
How a coil replacement runs
- 1
Confirm the leak is in the coil
Detector, then nitrogen test if needed.
- 2
Check the match
Condenser capacity, refrigerant and metering device.
- 3
Recover the refrigerant
Charge pulled out before any brazing.
- 4

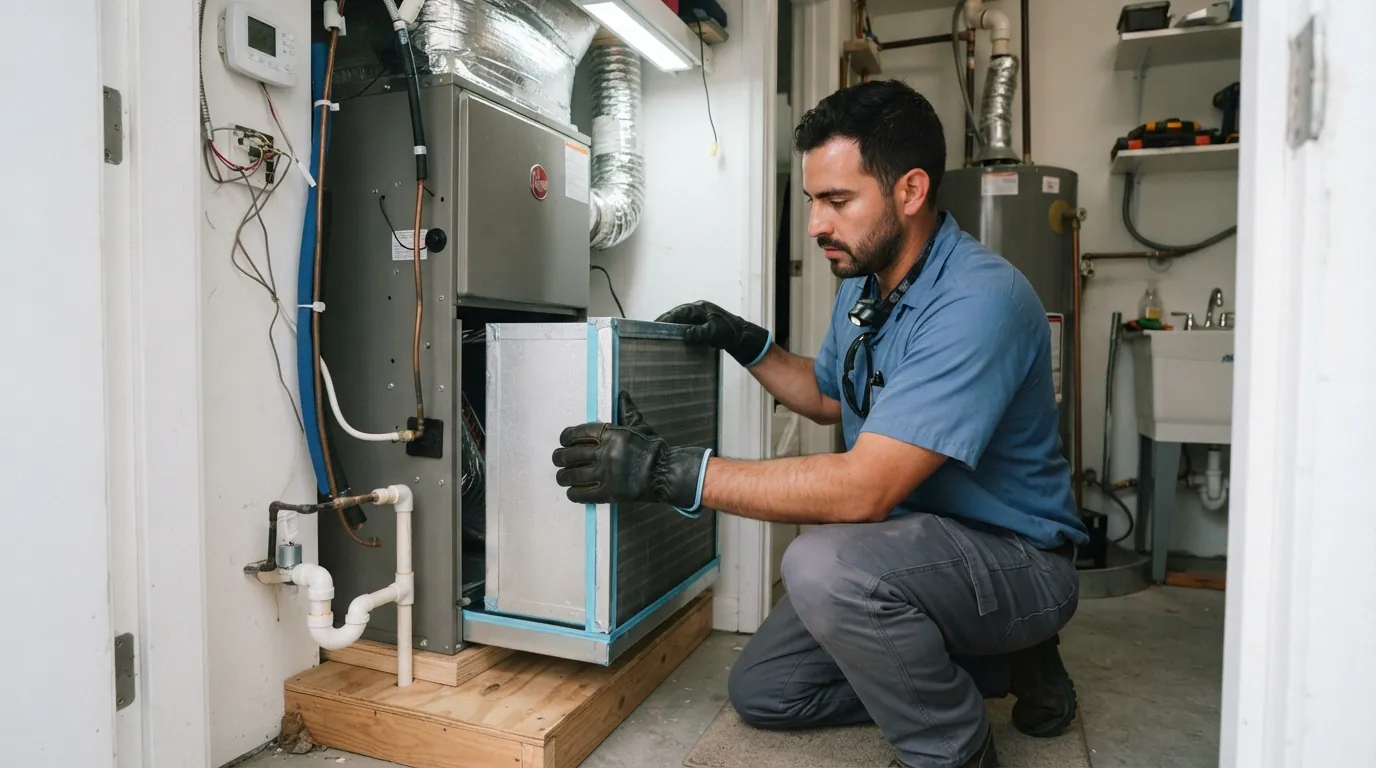

Remove and set the new coil
Pan and drain connections rebuilt.
- 5
Braze and pressure-test
Nitrogen purge, then a standing pressure test.
- 6
Evacuate and charge
Deep vacuum, nameplate charge weighed in.
- 7
Run test
Superheat, subcooling and supply temperature confirmed.
Brands we service and install
FAQ
Questions Miami customers ask about evaporator coil replacement
A single joint leak sometimes. Pinholes in the tubes can't be repaired reliably, so the coil is replaced.
Published Florida guides put coil replacement at $600 to $2,000, depending on size, access and warranty coverage.
Often, if the unit was registered. Labor and refrigerant usually aren't. We check the serial before pricing.
If the blower and cabinet are old and rusting, often yes. If they're sound, a coil alone is better value.
Usually most of a day once the coil is in hand, including vacuum and recharge.
It restores the capacity lost to the leak. Efficiency gains beyond that come from a full system upgrade.
